System

Max Light

The system is perfectly adapted for modern buildings with large glass surfaces, making it an ideal choice for creating elegant and bright spaces.

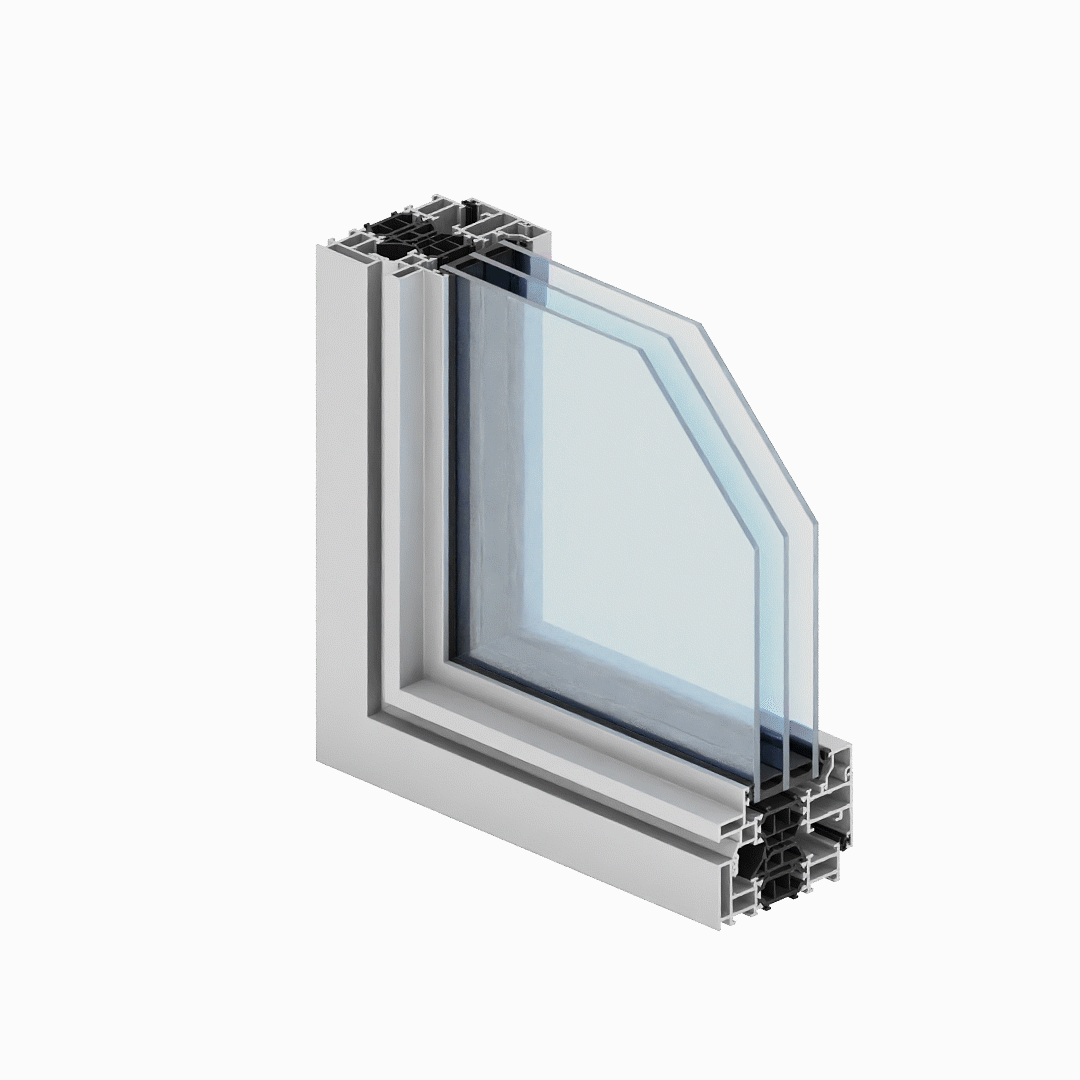

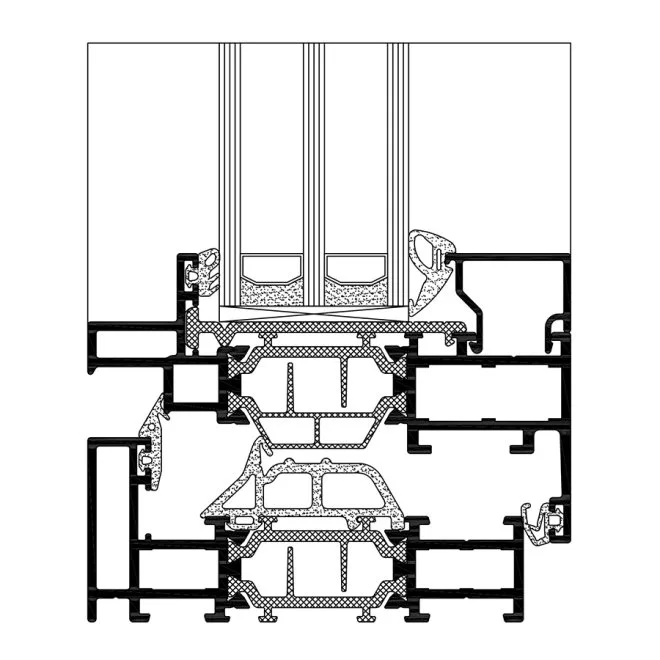

Pictures & drawings

Here we present visualisations and drawings of the system. This gives a clear picture of the design, structure and functionality of the system.

Briefly about Max Light

The system is perfectly adapted to modern buildings with large glass surfaces, making it an ideal choice for creating elegant and bright spaces. It is optimised for both residential and commercial projects and can be used in a variety of building styles and functions. With its higher insulation capacity, the system helps to improve the energy efficiency and comfort of the building, while maintaining a modern and stylish aesthetic. This makes it an excellent option for both new builds and refurbishments where both function and design are top priorities.
Technical specification
  • Glass
    2 glass, 3 glass
  • Seasonal
    Spring/Autumn, Winter
  • Leaf depth
    35mm, 68mm
  • Glazing interval
    20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59
  • Profile width
    35mm
  • Material
    Aluminium
  • Airtightness
    Class 4
  • Watertightness
    Class E
  • Wind load
    Class C5
  • A window system with thermal insulation, which has a smooth and narrow profile.
  • The specific profile shape (similar to steel profiles) gives the structure a modern industrial look.
  • System application: fixed windows, opening windows: single- or double-sided windows with tilt function, opening inwards.
  • The system stands out in the market with its unique and modern design.

Related products

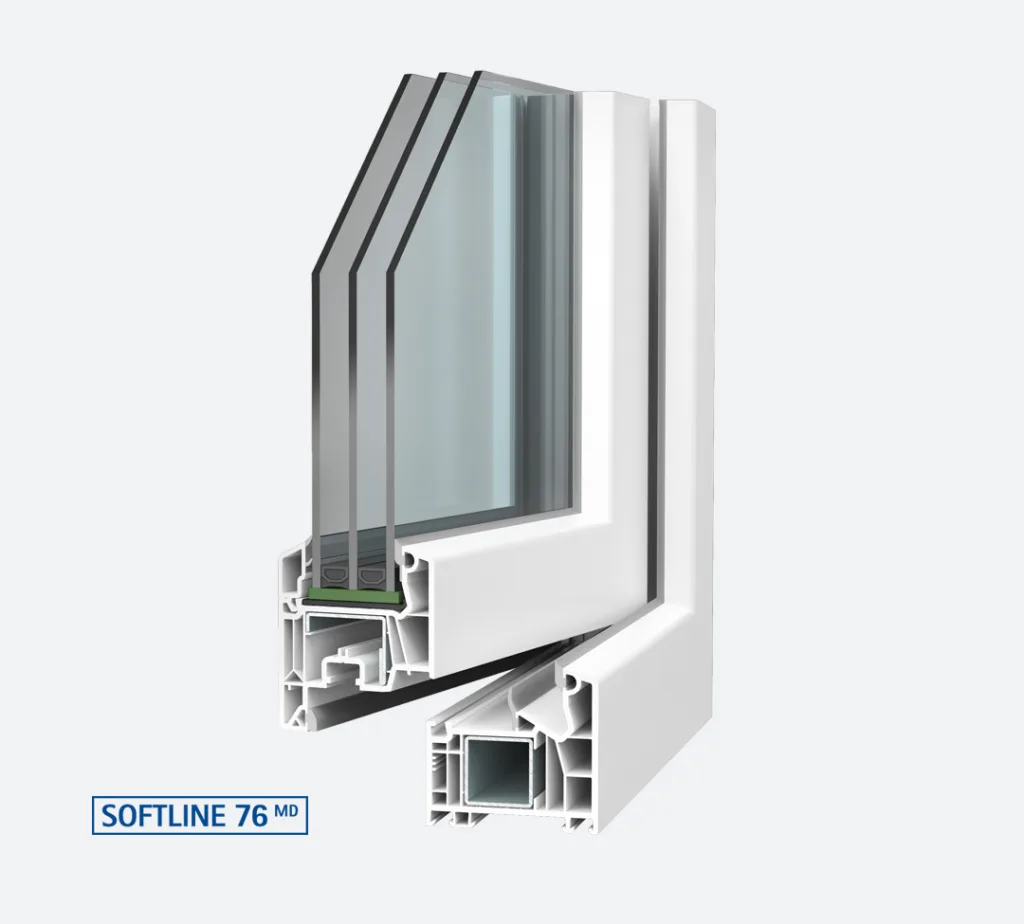

VEKA Softline 76 MD
